'KALIBR' offers most extensive product range for Thread & Plain gauges.

We manufacture gauges as per various International standards like ISO, ANSI/ ASME, British Standard (BS),DIN, JIS, API. Designing customized gauging solutions is our specialty.

Product Range

ISO Metric Thread Gauges MJ Thread Gauges Unified Thread Gauges UNJ Thread Gauges Wire Threads Inserts /Heli - Thread Gauges BSW/ BSF/ Whits Thread Gauges Pipe / G Thread Gauges BA Thread Gauges BS Cycle Thread Gauges BS Conduit Thread Gauges Pg Thread Gauges Trapezoidal Thread Gauges Acme Thread Gauges Stub Acme Thread Gauges Buttress Thread Gauges Saw Tooth / Metric Buttress Thread Gauges NPT Thread Gauges NPTF/PTF Thread Gauges BSPTr Thread Gauges Pipe / R Thread Gauges (ISO 7/2) M/ KEG Taper Thread Gauges (DIN 158) NGT Taper Thread Gauges Gauges for valve Fittings Casing, Tubing & Line Pipe Gauges for Oil Industry Oil Industry- Gauges for Rotary drill Plain Plug Gauges Plain Ring Gauges Setting Ring Gauges Snap Gauges Customized solutions for Gauging

Buttress Thread Gauges

BUTTRESS THREADS are used in the construction of artillery with the screw type breech block / gun barrels OR vices & screw jack. As Buttress Threads can withstand the axial load placed on it OR high force only in one direction, these are suitable for above applications.

Specification:&nbsnbsp;

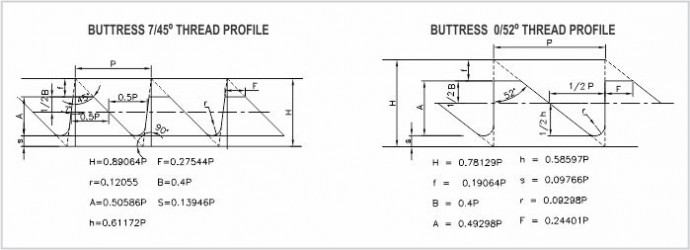

American Specifications: ANSI/ ASME B1.9- 1973 for 7⁰/45⁰thread Profile.
B.S Specifications: B.S 1657 - 1950 used for 7⁰/45⁰and 0/52⁰thread profile.

Manufacturing Range:
Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/2" to 14" and TPI from 20 to 2.

For more Technical Details on Buttress Threads download, Technical Information sheet from link given below.

For How to use gauges - Download Gauge users Manual from link given below - under development.

Technical Information sheet
