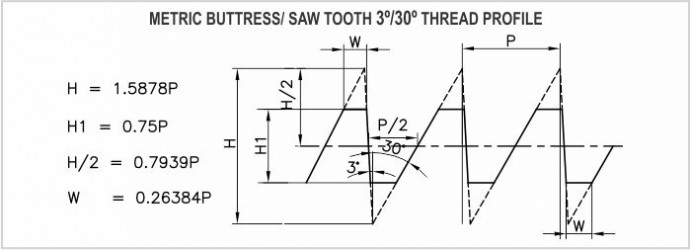

Saw Tooth / Metric Buttress Thread Gauges

SAW TOOTH THREADS are used in the construction of artillery with the screw type breech block / gun barrels OR vices & screw jack. As Buttress Threads can withstand the axial load placed on it OR high force only in one direction, these are suitable for above applications.

American Specifications: ANSI/ ASME B1.9- 1973 for 70/45thread Profile.

Manufacturing Range:

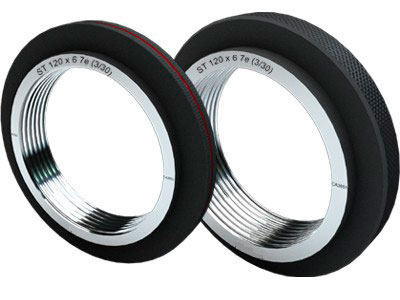

Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/2" to 14" and TPI from 20 to 2.

For more Technical Details on Saw Tooth Threads download, Technical Information sheet  from link given below.

For How to use gauges - Download Gauge users Manual from link given below - under development.


Technical Information Sheet
