'KALIBR' offers most extensive product range for Thread & Plain gauges.
We manufacture gauges as per various International standards like ISO, ANSI/ ASME, British Standard (BS),DIN, JIS, API. Designing customized gauging solutions is our specialty.
Product Range

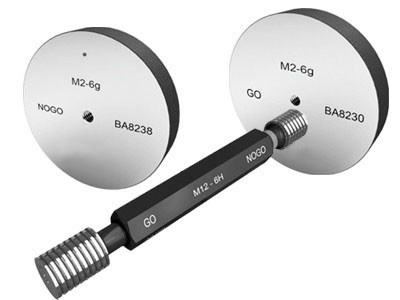

ISO Metric Thread Gauges

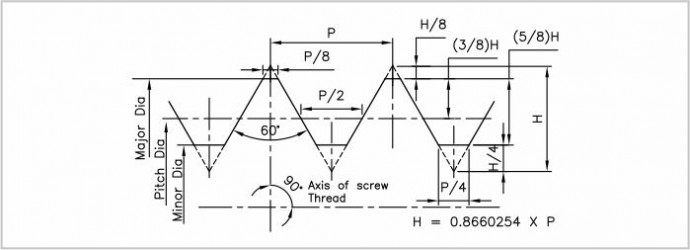

ISO Metric Gauges are most commonly used Gauges in the Industry.
Specification
ISO standard : Basic Dimensions: ISO 724 -1993 (E), Gauging Practice: ISO 1502-1996 & ISO 965/1- 1998.
Indian standard : Basic Dimensions: IS 4218 (3)-1999, IS 4218 (4)-2001, Gauging Practice: IS 2334- 2001.
DIN standard : Basic Dimensions & Gauging Practice: DIN 13.
ANSI standard : Basic Dimensions: ANSI / ASME B 1.13 M , Gauging Practice: ANSI / ASME B 1.16 M – 1984.
BS standard : Basic Dimensions: B.S. 3643 Part I & II - 2007, Gauging Practice: B.S 919 Part III - 2007.
JIS standard : Basic Dimensions: JIS B0205 & JIS B 0209, Gauging Practice: JIS B 0251-1998. As well as old version of specification JIS B 0251-1975 & JIS B 0252-1996, used for Tolerance Classes I, II, & III & two grades - Machine work & Inspection.
Manufacturing Range
Diameter 1.6mm to 400mm & Pitches covered are 0.35 mm to 12 mm.
For more Technical Details on ISO Metric Threads download, Technical Information sheet from link given below.
For ISO Metric component dimensions, download Component Dimensions sheet from link given below.
