BSPTr Thread Gauges

BSPTr Threads can provide pressure tight seal on threads without use of a sealing compound.  They are used in pipe assemblies where pressure tight joint is required on threads, without use of sealing compound.

Two Types of Gauges are recommended System A & System B.

Specification: BS 21 - 1985
Indian Standard:  Basic Dimensions - IS 554 - 1975 & Gauging Practice - IS 8999-1979.

Manufacturing Range:

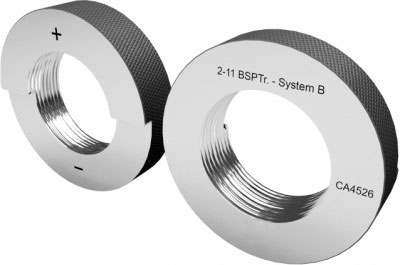

Taper Thread Plugs &
Rings for Pipe sizes 1/16" to 6" in both System A & System B Design.

For more Technical Details on BSPTr Threads download, Technical Information sheet  from link given below.

For How to use gauges - Download Gauge users Manual from link given below - under development.

For BSPTr component threads dimensions, download Component Dimensions sheet - under development.

Technical Information sheet
