Snap Gauges

PRODUCTS FOR PLAIN EXTERNAL DIAMETER GAUGING
-

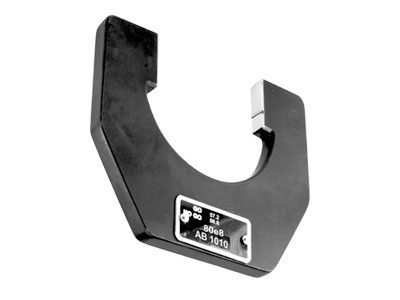

SNAP GAUGES.

Snap Gauges are used for attribute inspection of external diameter.

Specification:
Basic Dimensions: ISO 286 Part 1 & 2 - 2010/ IS 919 Part 1 & 2 1993.
Gauging Practice: DIN 7164 - 1966 & IS 3455-1971 / IS 7876-1975.

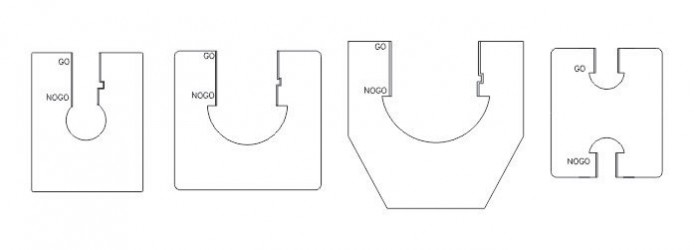

Manufacturing Range:
Single end Prograssive Type -  Diameter 3mm to 160 mm.
Double Ended (Separate Go & Nogo) -  Diameter 3mm to 100 mm.
Double ended I Type Snap Gauge -
Diameter 100mm - 300 mm.

For more Technical Details on Plain Ring Gauges download, Technical Information sheet  from link given below.

Technical Information Sheet
