Unified Thread Gauges

Unified Threads are used for general purpose fastening applications for Imperial system of units.

Specification -  ANSI/ASME B 1.2-1983.

Unfied Gauges Basic Dimensions as per BS 1580 Part 1 & 2 - 2007 & Gauging Practice as per BS 919 Part 1-2007 are manufactured if requested by customers.

Manufacturing Range:

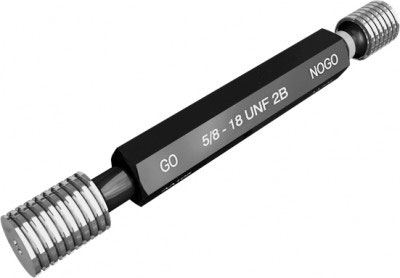

Thread Plug & Ring Gauges from No. 4 (0.112") to 14"

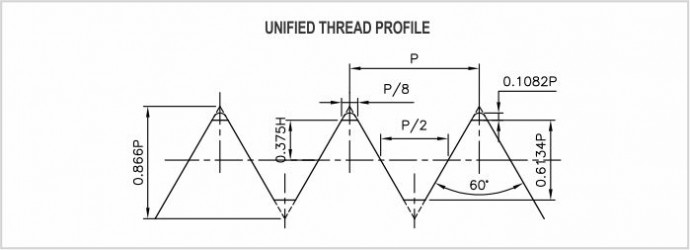

For more Technical Details on UNIFIED Threads download, Technical Information sheet  from link given below.

For Unified component dimensions, download Component Dimensions sheet from link given below.

For How to use gauges - Download Gauge users Manual from link given below - under development.


Technical Information Sheet    Unified Component Dimensions
