M/ KEG Taper Thread Gauges (DIN 158)

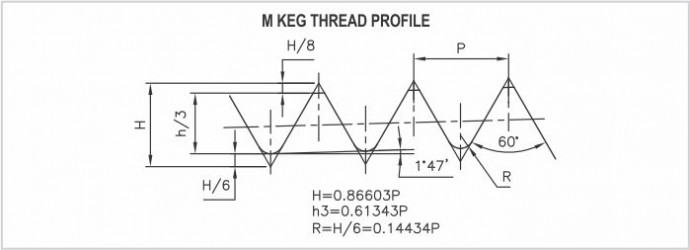

M KEG Metric Taper Threads are used for oil & grease Nipples where self sealing connections can not be obtained  by parallel threads with sealing washers.

DIN Standard:   Basic Dimensions: DIN 158 Part 1-1997 & Gauging Practice: DIN 158 Part 2 - 1997

Manufacturing Range:

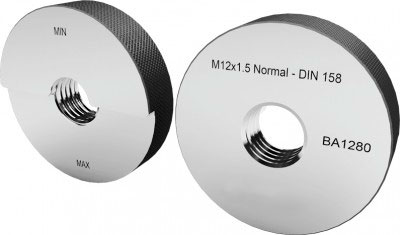

Parallel Limit Ring Gauges AND Taper Threaded Check Plug Gauge to check parallel ring for diameters from Mc5 to Mc60.
Pitches covered are from 0.8 , 1, 1.25, 1.5 & 2 mm.

We also manufacture Taper Ring Gauges as per old DIN 158 -1986 specification.

For more Technical Details on M/ KEG Threads download, Technical Information sheet  from link given below.

For How to use gauges - Download Gauge users Manual from link given below - under development.

For component threads dimensions, download Component Dimensions sheet - under development.


Technical Information Sheet
