NPT Thread Gauges

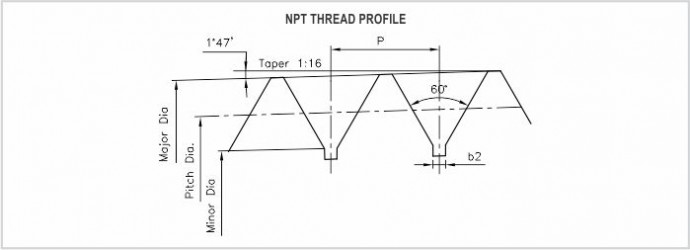

NPT THREADS are used in general purpose application of pipe assembly, where a pressure tight joint of pipes is made, by making the pipes wrench tight using a sealing compound.

Specification:
ANSI/ ASME B1.20.1 - 1983 for Basic Type Gauges & American Handbook H-28 Part II - 1957 for Step Limit type.

Manufacturing Range:

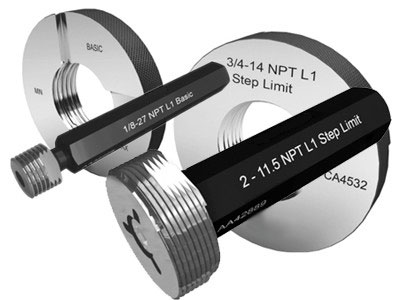

Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/16" to 12" in both Basic & Step Limit Design.

For more Technical Details on NPT Threads download, Technical Information sheet from link given below.

For How to use gauges - Download Gauge users Manual from link given below - under development.

For NPT component threads dimensions, download Component Dimensions sheet - under development.

Technical Information sheet
