Stub Acme Thread Gauges

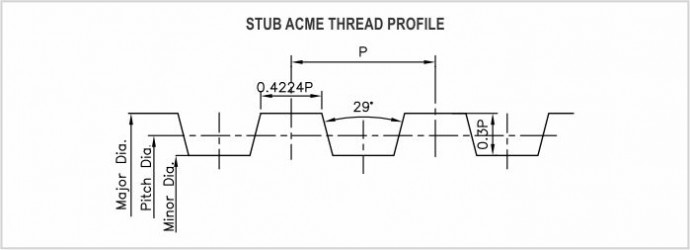

STUB ACME Threads are similar to ACME threads except that the thread depth/ height is less than ACME. These are used for thin walled applications, where coarse pitch is needed like tubes used in Oil fields equipments, where standard ACME threads can not be used due to thin wall.

Specification:
American Specifications: ANSI/ ASME B1.8 - 1988.

Manufacturing Range:

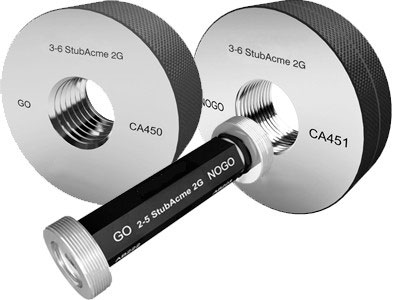

Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/4" to 14" and TPI from 16 to 2.

For more Technical Details on Stub Acme Threads download, Technical Information sheet from link given below.

For How to use gauges - Download Gauge users Manual from link given below - under development.

For Stub Acme component threads dimensions, download Component Dimensions sheet - under development.

Technical Information sheet
