UNJ Thread Gauges

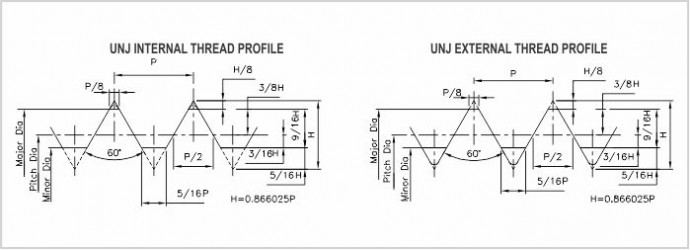

UNJ Threads are used in Aeronautic Industry for Imperial system of units.

Specification: BS 4084-1996    OR  ISO 3161-1999 & ISO 15872-2002.

Manufacturing Range:

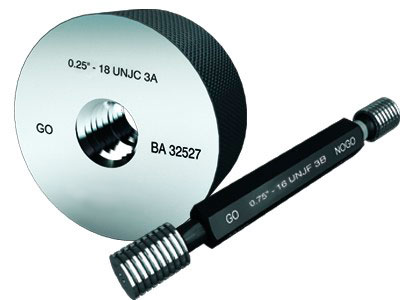

Thread Plug Gauges & Thread Ring Gauges from No.4 (0.112") to 6" Diameter & TPI 48 to 4 TPI.

For more Technical Details on UNIFIED Threads download, Technical Information sheet  from link given below.

For Unified component dimensions, download Component Dimensions sheet - under development.


Technical Information Sheet
