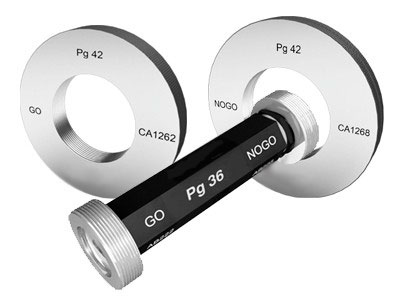

Pg Thread Gauges

PG Threads are based on DIN standard and are used for checking threads of pipe fittings used for electrical wiring.

Specification:
Basic Dimensions: DIN 40430 - 1971 & Gauging Practice: DIN 40431 (2) - 1972.

Manufacturing Range:
Pg sizes 7,9,11,13.5,16,21,29, 36, 42, 48.

For more Technical Details on Pg Threads download, Technical Information sheet  from link given below.

For Pg component threads dimensions, download Component Dimensions sheet - under development.



Technical Information sheet
