BSW/ BSF/ Whits Thread Gauges

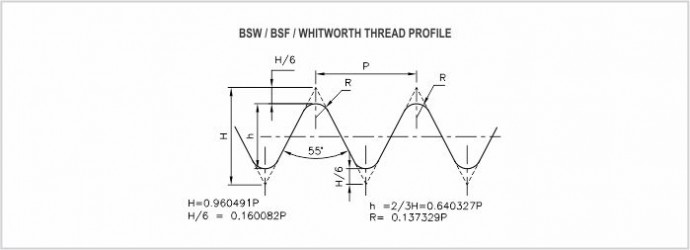

BSW/ BSF/ Whits threads are used where clerance between male & female threads is to be controlled. This uses Imperial system of units.

Specification: Basic Dimensions-  BS 84-2007 & Gauging Practice: BS 919 Part II - 2007.

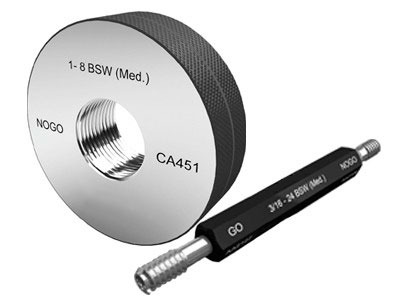

Manufacturing Range - Thread Plug & Ring Gauges from Diameter 1/8 to 6" , TPI 40 to 2.5

For more Technical Details on Wire Thread Insert Threads download, Technical Information sheet  from link given below.

For How to use gauges - Download Gauge users Manual from link given below - under development.

For BSW/ BSF threads component dimensions, download Component Dimensions sheet - under development.

Technical Information Sheet
